SCH100 EV Charger
Product Details
Brand: Sun Country Highway
UPC: 672546023500
Amperage: 100 Amp
Installation Type: Hardwired
Networking: Non-Networked
Warranty: 1-Year

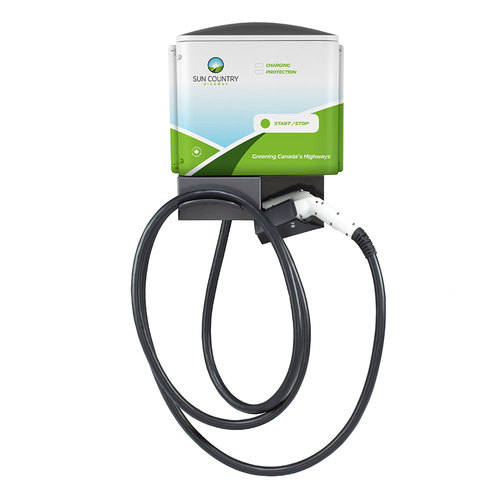

SCH100 EV Charger
The "big kahuna" of Level 2 EV charging with the ability to charge Tesla's new Model S in the shortest time. This charger means business
The SCH100 which provides the fastest charge times and highest power rating available, up to 400% faster charging compared to 25 amp chargers, with 70/80A, 19.2kW of power. The SCH100 meets cUL and UL listing safety standards. Unit comes with a 22 ft (6.8 m) cord set. The unit can be wall or pedestal mounted. *Pedestal sold separately.
| General | |
| Charging Power | 80 Amp (19.2kW max) |
| Product Dimensions | 17” W x 21” H x 12” L (mounting holes 16” on center) |
| Product Weight | 36 lbs |
| Installation | Hardwired |
| Supply Circuit | 208/240V, 100A dedicated circuit |
| Warranty | 1 year |
| Charge Cable Length | 25 feet (22 feet usable) |
| Vehicle Connector Type | SAE-J1772 (lockable) |
| Accessories Included | Connector Lock & Keys |
| Enclosure | Fully Sealed NEMA 4 |
| Environment Rating | Indoor/Outdoor rated |
| Operating Temperature | -22°F to 122°F (-30°C to +50°C) |
| Certifications | UL, cULus, ETL, cETLus |
