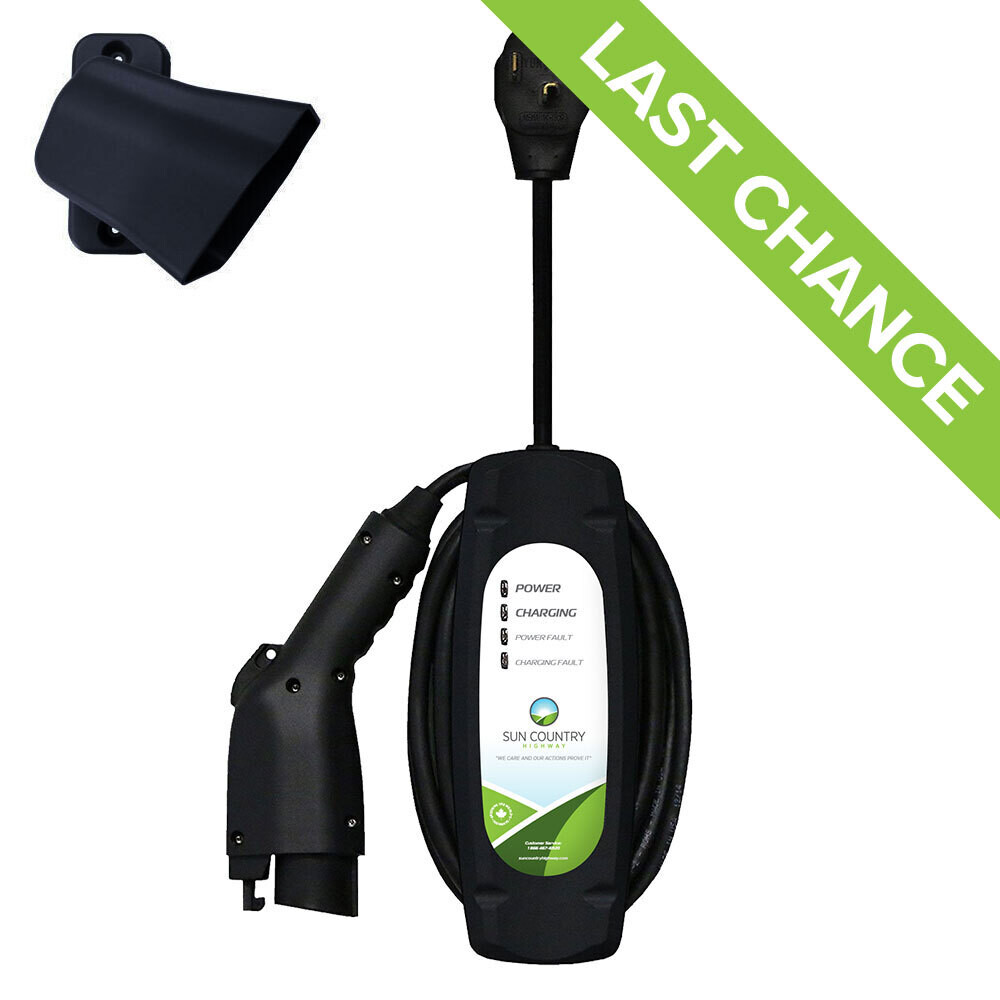

SCH20P EV Charger
Product Details
Brand: Sun Country Highway
UPC: 672546099215
Amperage: 20 Amp
Installation Type: Plugin 14-30, Plugin 6-30
Networking: Non-Networked
Warranty: 3-Years
SCH20P EV Charger
The world’s smallest high-power charging station, now with a Nema 14-30 plug
The SCH20P from Sun Country Highway is the ideal solution for home charging. SCH20P provides 16 Amps, 3.8kW of charging power in a durable and compact package. Plug in charger with a NEMA 14-30 plug. The Level II charger works with all plug-in vehicles, built and tested to automaker standards to ensure a reliable charge every time. Check out the Charge Times chart to see how quickly the SCH20P can charger your EV.
- LOW PROFILE - One of the smallest units in the industry
- QUALITY - Technology that works for the life of your current plug-in vehicle and then some
- CONVENIENCE - 25 feet of charging cable for installation and operation flexibility
- DURABILITY - Rugged, fully sealed NEMA 4 enclosure
- RELIABILITY - Backed by our 3-year warranty and excellent customer service team
- Indoor / Outdoor rated
- Travel-friendly
- Wall Mount SAE J1172 Connector Holster included
- Lockable SAE J1772 Connector
- Minimal standby power consumption (no on/off switch required)
| General | |
| Charging Power | 16 Amp (3.8 kW max) |

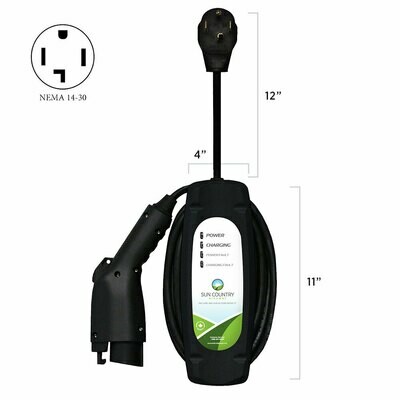

| Product Dimensions | 11"L x 4"W x 3"D |
| Product Weight | 5.6 lbs. |
| Installation | Plug-in (NEMA 14-30, cord length 12” including plug head) |
| Supply Circuit | 208/240V, 30A |
| Warranty | 3 years |
| Charge Cable Length | 25 feet |
| Vehicle Connector Type | Lockable SAE J1772 |
| Accessories Included | SAE J1772 Connector Holster (wall mount); Connector Lock & Keys |
| Enclosure | Fully Sealed NEMA 4 |
| Environment Rating | Indoor/Outdoor rated |
| Operating Temperature | -22°F to 122°F (-30°C to 50°C) |
| Certifications | ETL, cETLus, UL, cULus, ENERGY STAR® |
