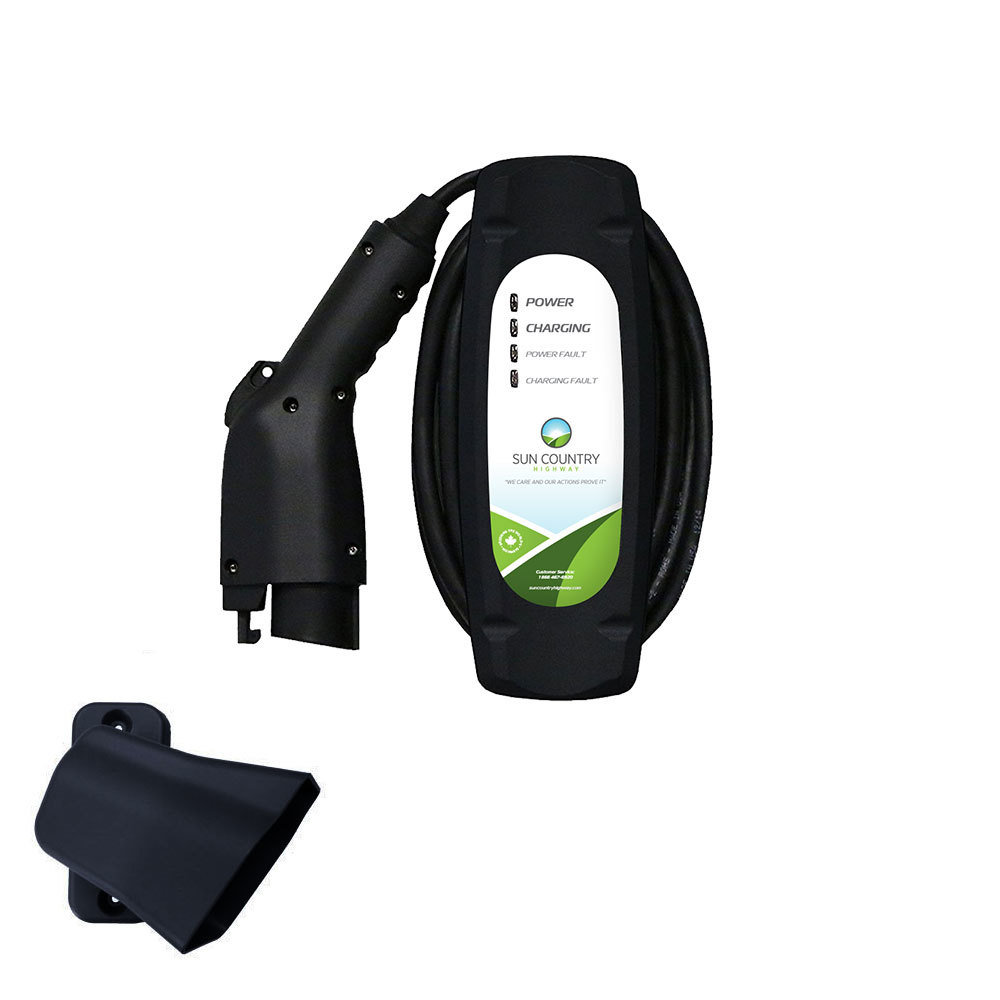

SCH25 EV Charger

The ideal Level II 208/240V solution for home or public charging

Since the last thing you need is one more item in your garage, we packed close to 5kW of power in this small package. The smallest EV charger footprint in the industry. More than 200% faster recharging than 110V level 1. 25A Breaker rated, 20A continuous current, J1772 connector. Fully recharges a Chevy Volt in 3-4 hrs and Nissan Leaf (3.3 kWh) in 7 hrs. Can be wall or pedestal mounted. NEMA 4 rated for outdoor use. Unit comes with 25 ft (7.62 m) of charge cable, and holster. Meets cUL and UL listing safety standards.

• LOW PROFILE - One of the smallest units in the industry

• QUALITY - Technology that works for the life of your current plug-in vehicle and then some

• CONVENIENCE - 25 feet of charging cable for installation and operation flexibility

• DURABILITY - Rugged, fully sealed NEMA 4 enclosure for installation anywhere

• RELIABILITY - Backed by our 3-year warranty and excellent customer service team

• ENERGY STAR® certified

General
Charging Power	20 Amp (4.8 kW max)
Product Dimensions	11"L x 4"W x 3"D
Product Weight	6.4 lbs.
Installation	Hardwired (3 foot service whip provided)
Supply Circuit	208/240V, 25A
Warranty	3 years
Charge Cable Length	25 feet
Vehicle Connector Type	Lockable SAE J1772
Accessories Included	SAE J1772 Connector Holster, Wall Mount
Enclosure	Fully Sealed NEMA 4
Environment Rating	Indoor / Outdoor
Operating Temperature	-22°F to 122°F (-30°C to 50°C)
Certifications	ETL, cETLus, UL, cULus, ENERGY STAR®
